Features

TEM-LINKAGE

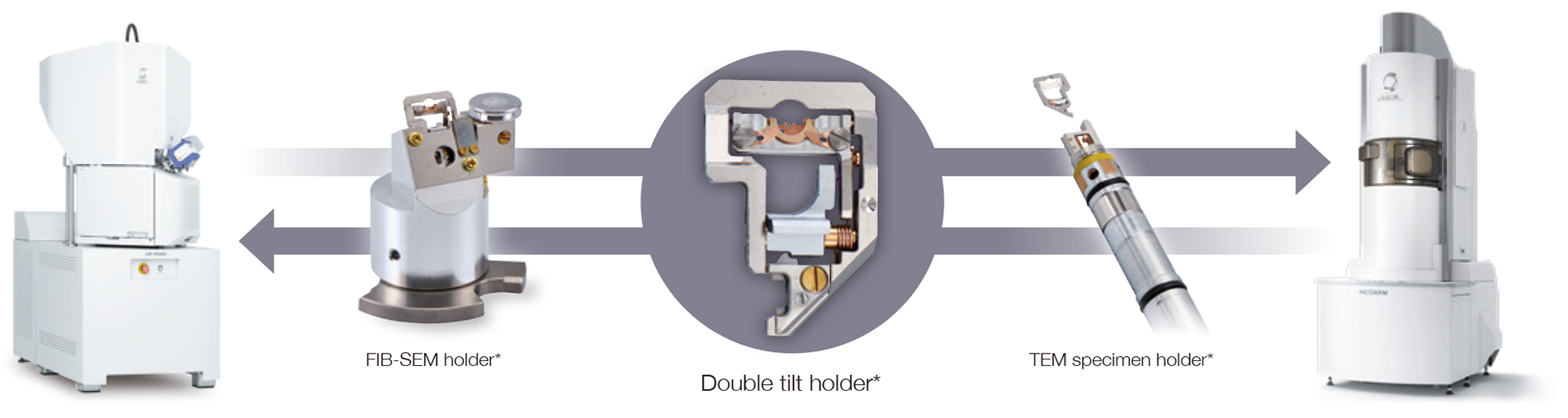

The use of JEOL’s double tilt cartridge and TEM holder* facilitates linkage between the TEM and the FIB. The cartridge can be attached to the dedicated TEM specimen holder with a single touch.

CHECK-AND-GO

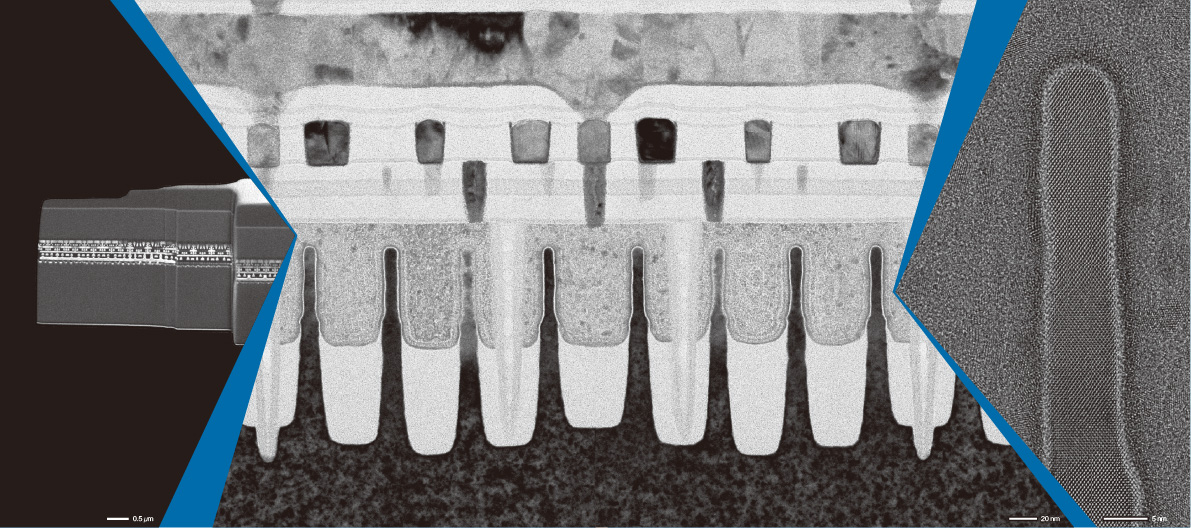

To precisely and efficiently prepare a TEM specimen, it is essential to quickly check the preparation progress. With its high-tilt stage and detector scheme, the JIB-PS500i allows for seamless transition from FIB milling to scanning transmission electron microscope (STEM) imaging. Fast transitions between lamella processing and STEM imaging lead to efficient specimen preparation.

AUTOMATIC PREPARATION

The JIB-PS500i automates specimen preparation using the STEMPLING2* automatic TEM specimen preparation system. This automatic system enables any operator to smoothly prepare specimens for TEM.

HIGH-RESOLUTION & HIGH-CONTRAST SEM Imaging
Stop hesitating, stop missing the end-point in milling. High quality SEM images assist you.

Signal detection system

Multiple detectors are available, including the standard SED, UED and iBED. Selecting the optimum detector makes it possible to observe sharp images of various specimens under various experimental conditions.

High resolution SEM imaging

A newly-developed super conical lens system is built into the SEM column, greatly improving the imaging performance at low accelerating voltage. This superb imaging is very useful to check the end-point milling status of lamela specimen using the SEM.

SEM imaging of FIB-prepared cross section

A very small, retractable backscattered electron detector (RBED)* can be used even with high stage tilt. For imaging of a FIB-prepared cross section, which requires both specimen surface and tilted imaging, a combination of various detectors including the SED and UED makes it suitable for cross-sectional SEM imaging.

EDS integration software*

EDS analysis functions are built into the main instrument control software, thus enabling elemental analysis of the specimen without switching the software. (This is available only when the instrument is equipped with a JEOL EDS*.)

HIGH-POWER & HIGH-QUALITY FIB processing
For the best specimen preparation, More powerful FIB processing.

Large-area, Fast FIB processing

The FIB column enables processing with a large-current Ga ion beam (up to 100 nA).
This high-current processing is particularly effective for large-area imaging and analysis.

Damage-layer removal by low-kV processing

The FIB column is set to a shorter working distance than JEOL previous models; this, in conjunction with a new power supply, has led to greatly improved processing performance at low accelerating voltages. The addition of a new control system, yields the high-performance fine milling capabilities essential for quality lamella preparation.

New Chamber & Stage Design

Highly-flexible, high tilt & large stage to meet any requirement.

Loading a large specimen

The JIB-PS500i adopts a large specimen chamber and a newly-developed 5-axis full eucentric large-motor stage, increasing the stage movement range while accommodating a large specimen. This large stage allows for processing and imaging of the entire surface of a specimen 130 mm in diameter. Furthermore, a sample with a height up to 80 mm can be loaded to the specimen chamber.

AVERT Engine to determine movement limit using 3D models

AVERT Engine is used to determine the specimen movement limit using 3D models of the specimen holder, stage and object inside the chamber. Thus in any condition, the specimen cannot interfere with the detector and objective lens.

* is optional.
